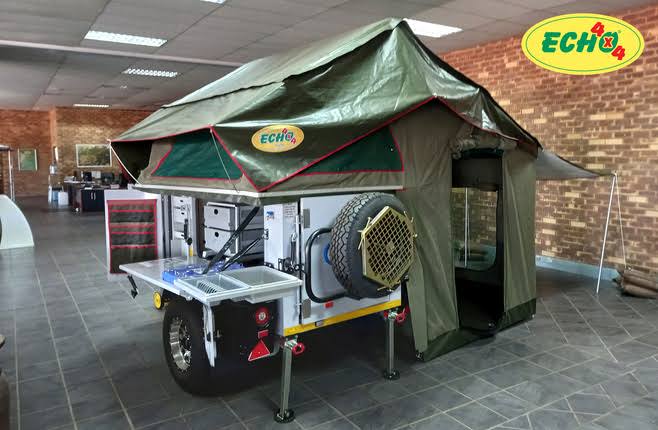

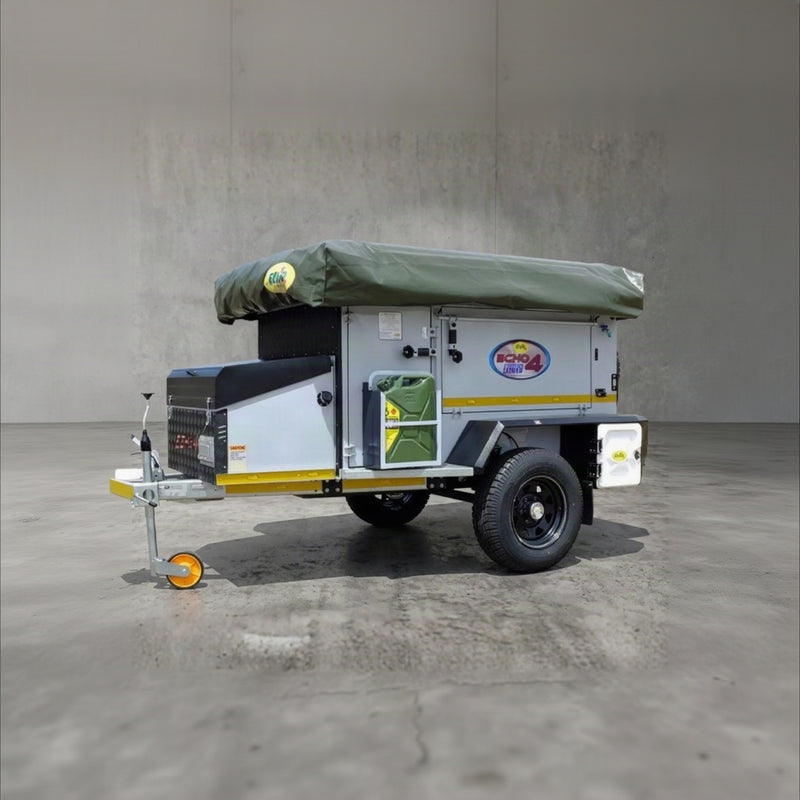

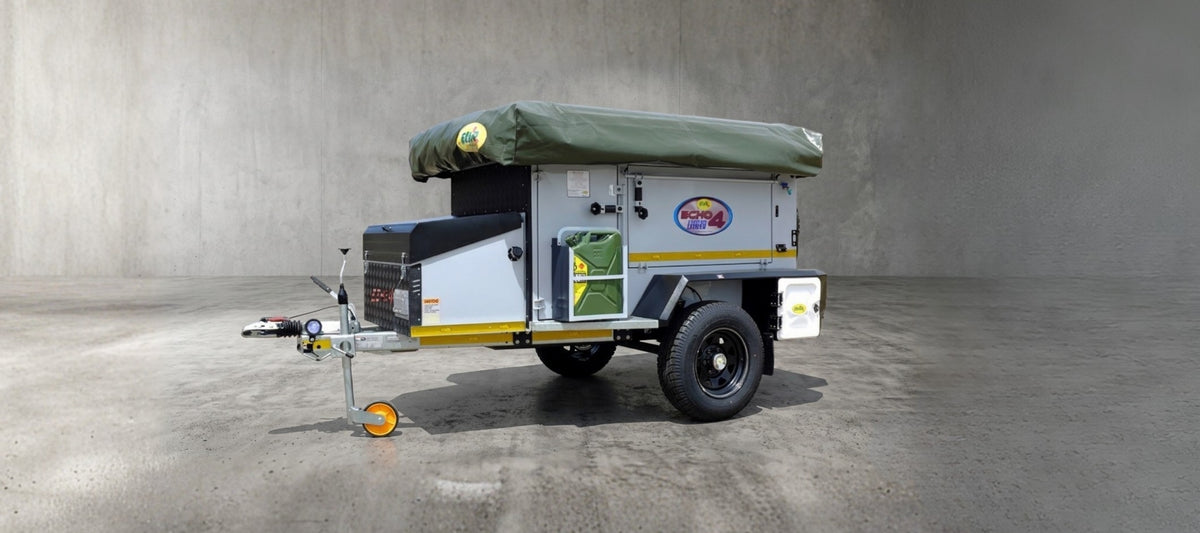

Echo4x4 Echo 4 Legend Off-Road Trailer

  • Storage

    • LP Gas cylinder storage compartments (x2)

    • Jerry-can brackets (x2)

    • 100L Water tank

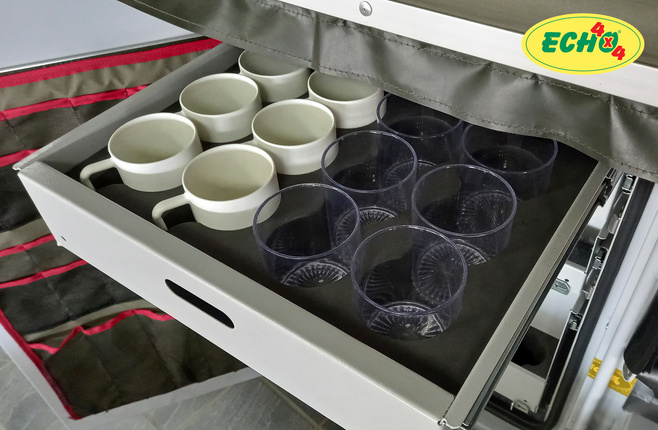

    • Front and rear 4 drawer modular system

    • Echo 4 nose-cone (270L) and ventilation box

  • Body

    • 1.2mm Electro galvanised steel

    • Stainless steel bolts and nuts

    • Load area tie down rails

    • Container style doors

    • Automotive style door rubbers

  • Chassis

    • Galvanised

    • Rear support lifting legs (AL-KO)

  • Wheels & Suspension

    • 15” Steel rims (standard)

    • 2500kg Rated axle

    • 32” 8 Blade spring suspension

    • Shock absorbers

    • Rear mounted spare wheel and bracket

    • 200mm Heavy duty removable jockey-wheel

    • Brake-away cable

    • Run-in brake system

  • Kitchen

    • Dual plate LP gas stove

    • Wash basin and drying rack

  • Tent

    • Trailer tent with drop down / side room

    • High density foam mattress

    • 400g Military spec two tone canvas

    • Rip-stop canvas

    • Various awnings (kitchen, side, U-shape)

    • Side wall set (1-5; 6-8)

    • Ground sheets

    • Condensation sheets

  • Electronics

    • 12V Truck type LED lights

    • 7 Pin standard wiring (SABS)

    • EPP3 MK2—20A—power management systemfitted with 74Ah high cycle battery

    • 12V High pressure water pump

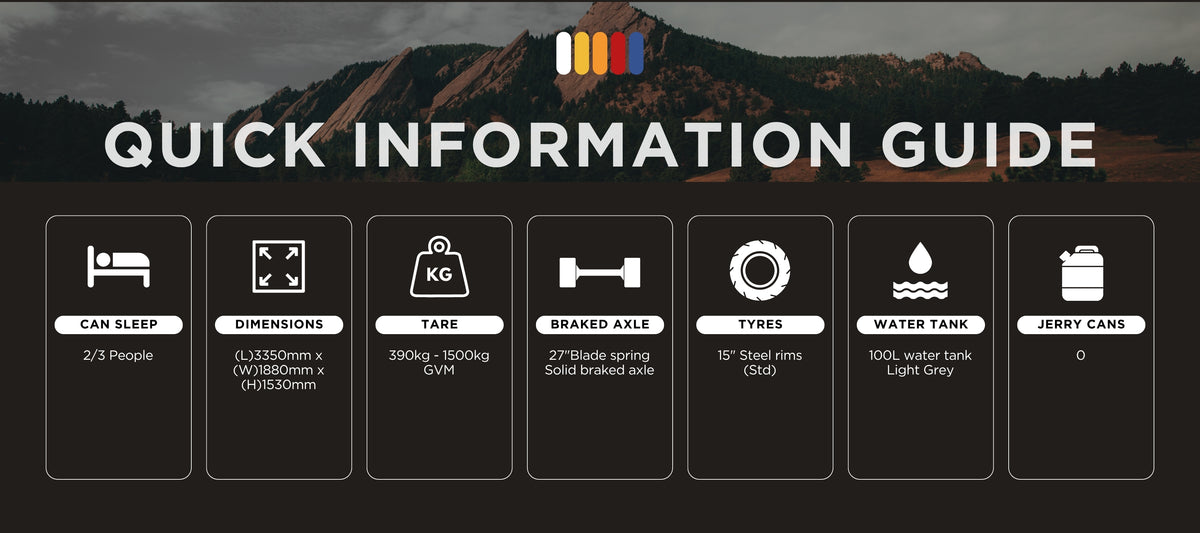

  • Specifications

    • Tare: 390kg

    • GVM: 1500kg

    • Dimensions: W x L x H: 1880mm x 3350 x 1530

    • Load-body: W x L x H: 1130mm x 2000 x 910

    • Load-body volume: 2057L

  • Additional Extras

    • Non-standard Echo rims / tyres

    • Bed extension and mattresses

    • Stove windshield

    • Fire extinguisher

    • Interior carpeting

    • Mud flaps

    • Colour: Legend / Khaki

    • 20m 220V Extension cable

    • 220V Caravan adaptor

    • Full PVC cover

    • Spare wheel cover

    • 40-90 Litre fridge / freezer (National Luna spec)
