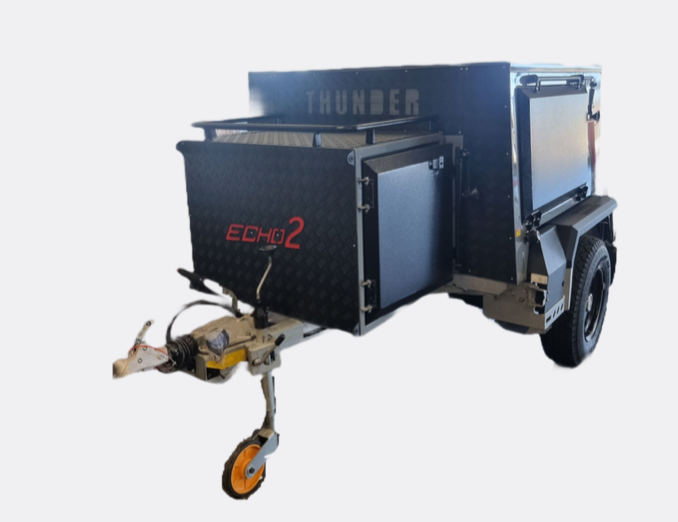

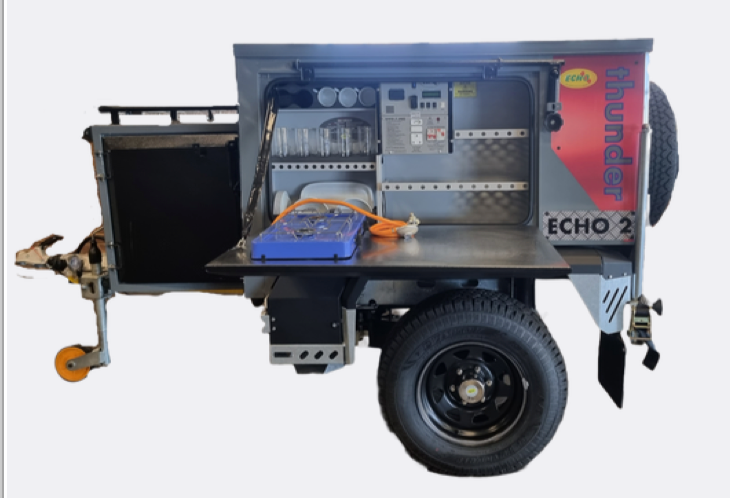

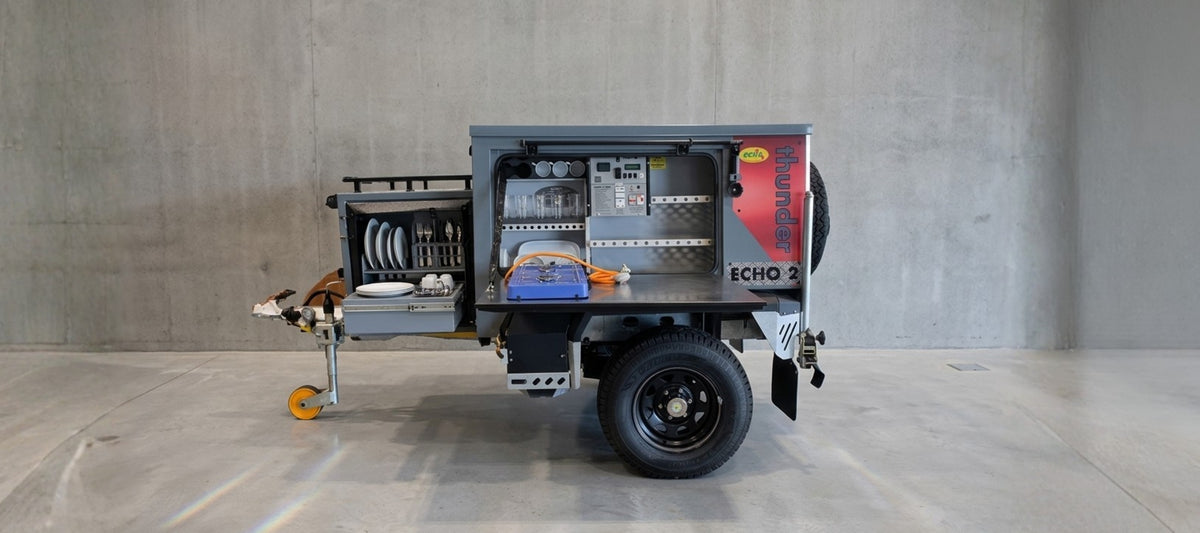

Echo4x4 Echo 2 Thunder Off-Road Trailer

  • Storage

    • LP Gas cylinder storage trays (x2)

    • Jerry-can brackets (x2)

    • 120L Water tank

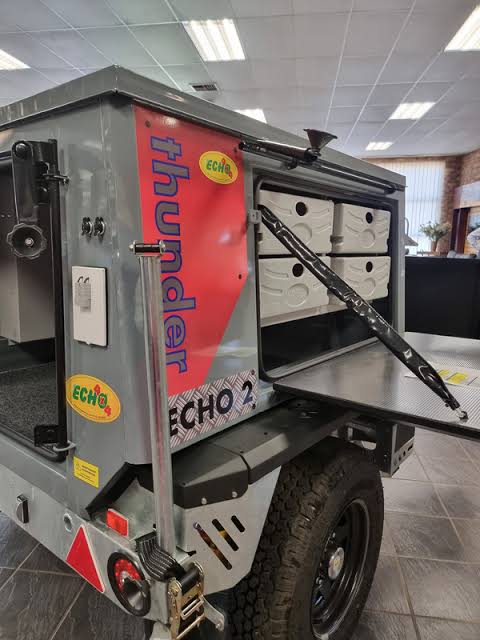

    • Rear 4 drawer modular system

  • Body

    • 1.2mm Electro galvanised steel

    • Stainless steel bolts and nuts

    • Load area tie down rails

    • Container style doors

    • Automotive style door rubbers

  • Chassis

    • Galvanised

    • High lift jack points

    • Ratchet lift rear support struts

  • Wheels & Suspension

    • 15” Steel rims (standard)

    • Independent suspension 2500kg rated

    • Shock absorbers

    • Rear mounted spare wheel

    • 200mm Heavy duty removable jockey-wheel

    • Break-away cable

    • 38” 8 Blade suspension with lifting shackle

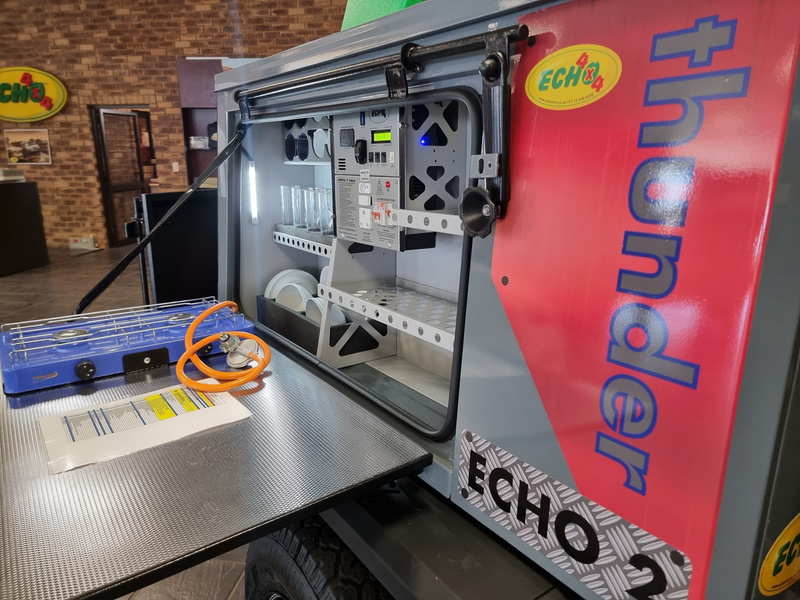

  • Kitchen

    • Dual plate LP gas stove

    • Wash basin and drying rack

  • Tent

    • Trailer tent with drop down / side room

    • High density foam mattress

    • 400g Military spec two tone canvas

    • Rip-stop canvas

  • Electronics

    • 12V Truck type lights

    • 7 Pin standard wiring (SABS)

    • EPP3 MK2—20A—power management system —fitted with 105Ah high cycle battery

    • 12V High pressure water pump

    • 12V / 24V LED Truck type lights

    • 12V / 24V LED Number plate light

  • Additional Extras

    • Full PVC cover

    • Interior carpeting

    • Mud flaps

    • Rear door bag (inside)

    • Spare wheel cover

    • Non-standard Echo rims / tyres

    • Tec 5 nose-cone with fridge slider

    COLOUR OPTIONS: Legend Light grey , Tech dark grey , Thunder grey

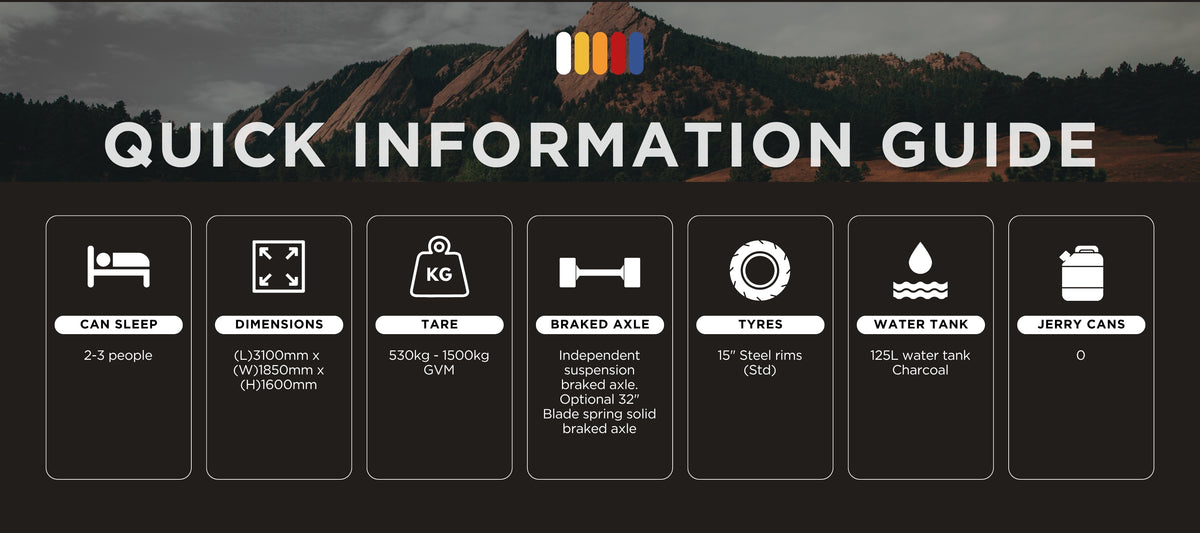

  • Specifications

    • Tare: 530kg

    • GVM: 1500kg

    • Dimensions: W x L x H: 1850mm x 3100 x 1600

    • Load-body: W x L x H: 1500mm x 1600 x 910

    • Load-body volume: 2184L

    • Nose-cone volume: 270L
