Echo4x4 Echo 5 Thunder Off-Road Trailer

  • Storage

    • LP Gas cylinder storage trays (x2)

    • 125L Water tank

    • Front and rear 4-drawer modular system

    • 4 Drawer modular system

    • Jerry-can mounting brackets (x2) (jerry-cans OPTIONAL) Thunder grey

    • Tec nose-cone with fridge slider

    • Wood rack above nose-cone

  • Body

    • 1.2mm Electro galvanised steel

    • Stainless steel bolts and nuts

    • Container style doors

    • Automotive style door rubbers

  • Chassis

    • Galvanised

    • Ratchet lift rear support struts

    • Skid plate on A-frame

    • High lift jack points

  • Wheels & Suspension

    • 15” Steel rims (standard) • Add-on room to tent

    • 2500kg Rated axle • Full side wall set

    • Independent suspension (2500kg rated) • Ground sheets

    • Shock absorbers • Condensation sheets

    • Rear mounted spare wheel • Stone-net protector

    • 200mm Heavy duty removable jockey-wheel • Bed extension and mattresses

    • Break-away cable • Full PVC cover

    • 38” 8 Blade suspension with floating shackle

  • Kitchen

    • Wash basin and drying rack

    • Self igniting glass top LP gas hobb

  • Tent

    • Trailer tent with drop down / side room

    • High density foam mattress

    • 400g Military spec two tone canvas

    • Rip-stop canvas

    • Condensation sheet/s

  • Electronics

    • 12V / 24V LED Truck type lights

    • 12V / 24V LED Number plate light• 7 Pin standard wiring (SABS)

    • EPP3-7 MK2—20A—power management system—fitted with high cycle battery

    • 12V High pressure water pump

    • 105Ah High cycle battery

  • Shower

    • Slide out bathroom with shower
    • Flexible hand held shower
    • Solid moulded shower floor
    • Soap rack, mirror and shower curtain
OPTIONAL EXTRAS
    • Porta Potti
    • Aircon
    • Silent Generator
    • Solar panel and mounting
    • 220 Volt Extension cable 20m
    • 220 Volt Caravan adaptor
    • Side walls
    • Ground sheets

  • Additional Extras

    • Silent generator

    • 40-90L fridge / freezer (National Luna spec)

    • Non-standard Echo rims / tyres

    • 220V Caravan adaptor

    • Add-on room to tent

    • Full side wall set

    • Ground sheets

    • Condensation sheets

    • Stone-net protector

    • Bed extension and mattresses

    • Break-away cable • Full PVC cover

    • Spare wheel cover

    • Mud flaps

    • Fire extinguisher

    • Stove windshield

    Independent coil spring

    COLOUR OPTIONS: Legend Light grey , Tech dark grey ,

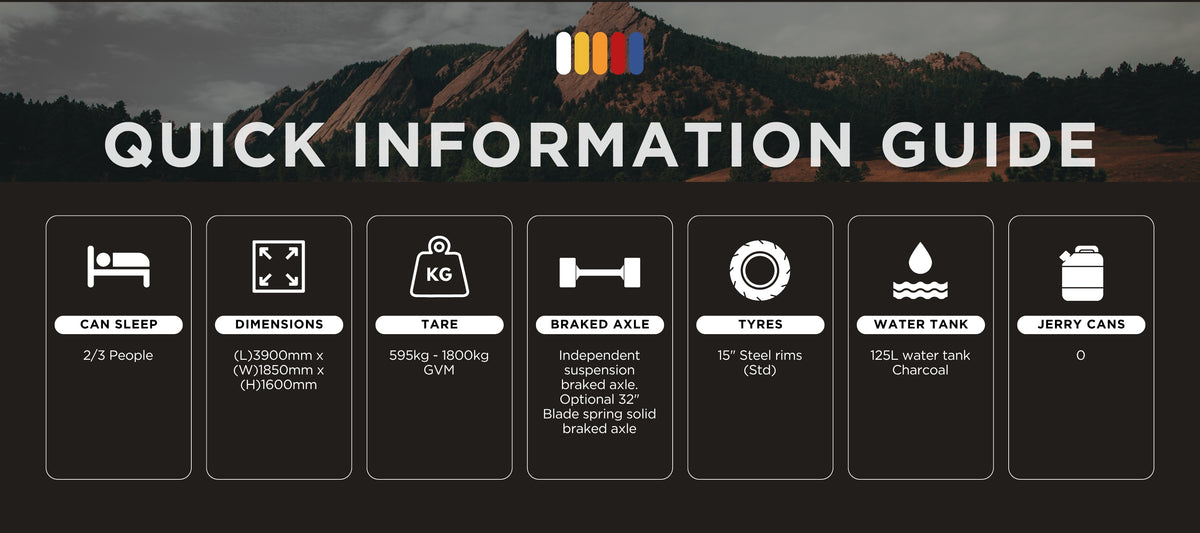

  • Specifications

    • Tare: 595kg

    • GVM: 1800kg

    • Dimensions: W x L x H

    • Load-body: W x L x H:  1500mm x 2200 x 910

    • Load-body volume: 3003L

    • Nose-cone volume: 393L
