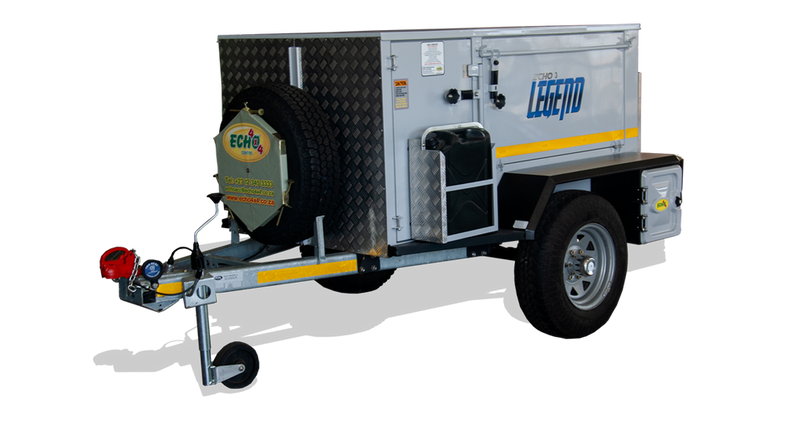

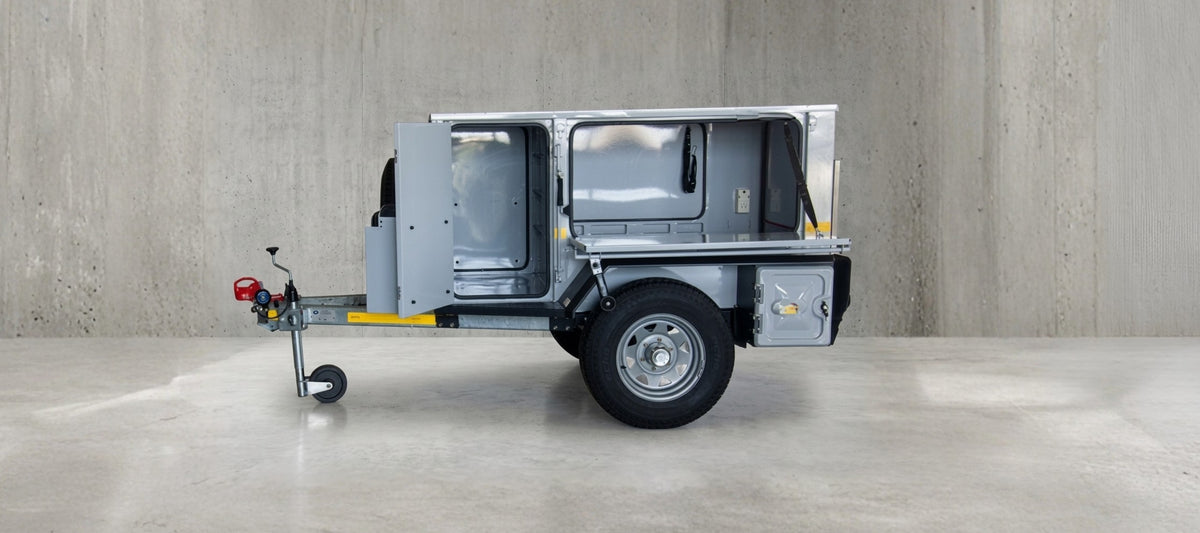

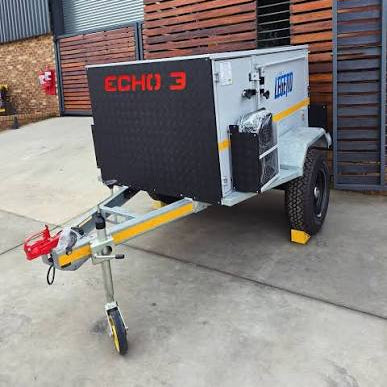

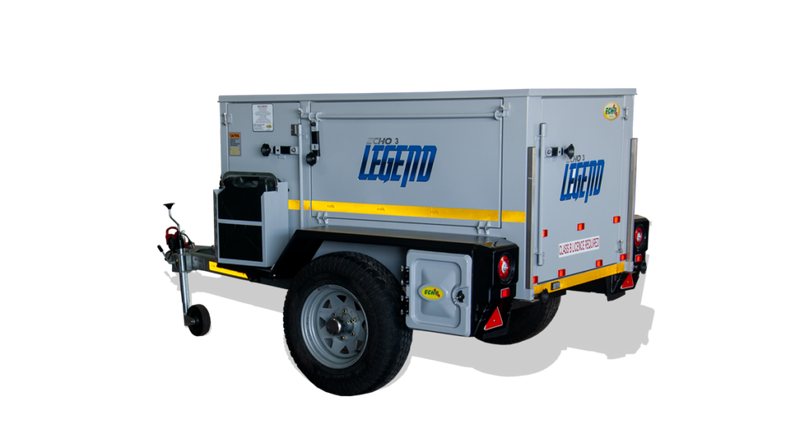

Echo4x4 Echo 3 Legend Off-Road Trailer

  • Storage

    • LP Gas cylinder storage compartments (x2)

    • Jerry-can brackets (x2)

    • 100L Water tank

    • Front and rear 4 drawer modular systemOPTIONAL

  • Body

    • 1.2mm Electro galvanised steel

    • Stainless steel bolts and nuts

    • Load area tie down rails

    • Container style doors

    • Automotive style door rubbers

  • Chassis

    • Galvanised

    • Rear support lifting legs (AL-KO)

  • Wheels & Suspension

    • 15” steel rims (standard)

    • 1800kg rated axle

    • 32” 8 blade spring suspension

    • Front mounted spare wheel

    • 200mm heavy duty removable jockey-wheel

    • 50mm Ball coupler with safety chain

  • Kitchen

    • Dual plate LP gas stove

    • Wash basin and drying rack

  • Tent

    • Trailer tent with drop down / side room

    • High density foam mattress

    • 400g Military spec two tone rip-stop canvas

    • Various awnings (kitchen, side, U-shape)

    • Side wall set (1-5; 6-8)

    • Ground Sheets

    • Condensation sheets

  • Electronics

    • 12V / 24V LED Truck type lights

    • 12V / 24V LED Number plate light

    • 7 Pin standard wiring (SABS)

    • EPP3 MK2—20A—power management systemfitted with 74Ah high cycle battery

    • 12V High pressure water pump

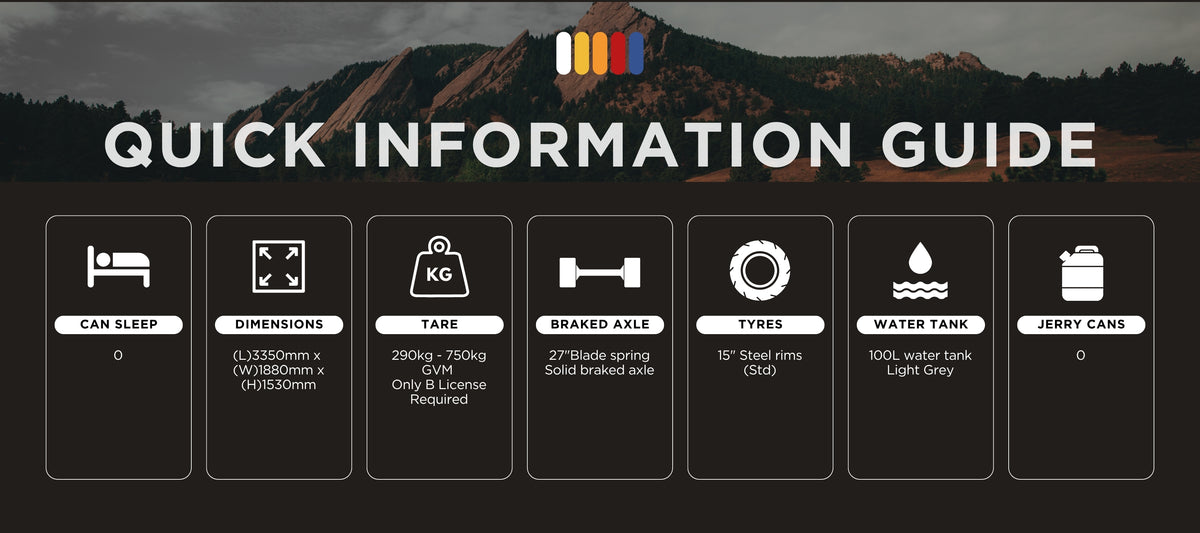

  • Specifications

    • Tare: 290KG

    • GVM: 750KG

    • Dimensions: W x L x H: 1880mm x 3350 x 1530

    • Load-body: W x L x H: 1130mm x 1900 x 910

    • Load-body volume: 1953L

  • Additional Extras

    • Full PVC cover

    • Stove windshield

    • Bed extension and mattresses or SB

    • Safety barrier (SB)

    • Interior carpeting

    • Mud flaps

    • Colour: Legend / Khaki

    • Fire Extinguisher

    • 20m 220V Extension cable

    • 220V Caravan adaptor

    • Non-standard Echo rims / tyres
